White Hook Magnets
White Hook Magnets
Material: Ferrite
Material: Ferrite

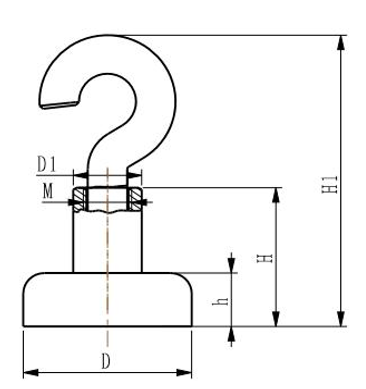

Art No. | D mm | h mm | M | H mm | H1 mm |
Dead Weight (g) |
Holding force (N) |
PTF08/16 | 16 | 5 | 4 | 12.5 | 35 | 12 | 10 |
PTF08/25 | 25 | 8 | 4 | 17 | 38 | 25 | 45 |
PTF08/32 | 32 | 7 | 4 | 18 | 38 | 34 | 85 |
PTF08/40 | 40 | 8 | 5 | 18 | 46 | 58 | 130 |
PTF08/57 | 57 | 11 | 5 | 20 | 48 | 150 | 290 |
